Understanding the 10‑Ton Hydraulic Porta Power Ram

What a hydraulic ram actually does

A hydraulic ram is essentially a sturdy cylinder that converts pressurised fluid into linear force. When you pump fluid into the chamber, a piston pushes out, delivering a steady, controllable push. The “10‑ton” rating simply means the ram can exert up to ten tons of force at its rated pressure—enough to lift small trucks, open heavy doors, or position large machinery.

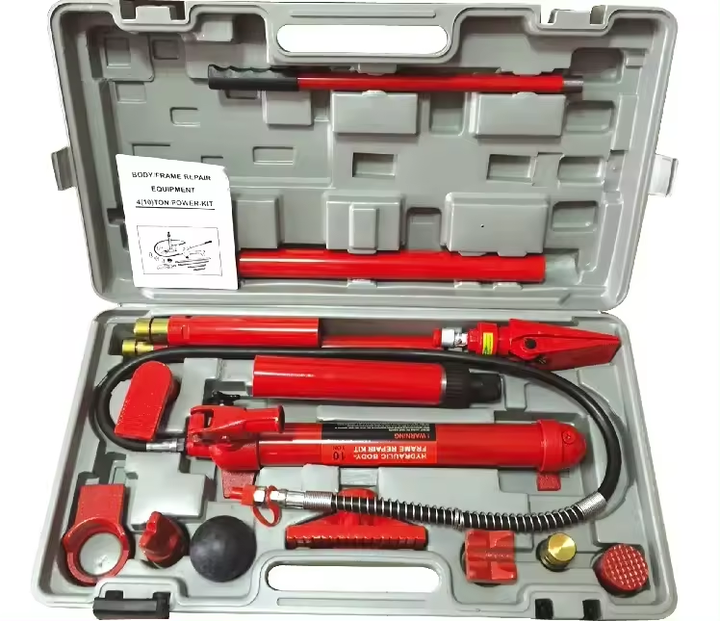

Core components of the Porta Power model

• Cylinder barrel – forged steel or alloy, machined for strength and resistance to wear.
• Piston and rod – the moving heart; the rod extends out of the barrel to do the work.
• Seals and wipers – keep hydraulic fluid in and contaminants out.
• Port connections – standard 1‑inch NPT ports for easy hookup to pumps, hoses, or valves.
• Mounting flange – pre‑drilled holes that align the ram with a frame or base plate.

How the 10‑ton rating is achieved

Force equals pressure times area (F = P × A). Porta Power designs its cylinders with a bore size that, when paired with a typical pump pressure of 1500 psi, delivers roughly ten tons of thrust. In practice, you’ll see the exact rating vary slightly with fluid temperature and pump efficiency, but the engineering margin ensures safe operation at the stated limit.

Typical applications

Because the ram provides a smooth, controllable push, it shows up in many industries:

• Automotive lifts – raising a car chassis for under‑car work.
• Industrial machinery – positioning presses, molds, or conveyor sections.
• Agricultural equipment – opening heavy grain bins or moving large gates.
• Marine settings – lowering hatch covers or adjusting deck‑gear.

Each scenario values the ram’s ability to hold a position without power, thanks to the fluid’s incompressibility.

Installation basics you should follow

Even a “plug‑and‑play” device needs a careful start. Begin by securing the mounting flange to a sturdy, level surface—welded steel or a heavy‑duty frame works best. Align the rod with the load direction; any side‑load can stress the seals prematurely. Connect the pump using the recommended hose size (usually ½‑inch ID) and install a pressure‑relief valve set just below the maximum rating to protect the cylinder.

Operating the ram safely

Before you press the start button, check the fluid level and look for any leaks around the ports. Slowly build pressure; a sudden surge can cause the rod to jerk, potentially damaging the load. Use a flow‑control valve if you need a gentle start—especially when lifting delicate equipment. Once the load is positioned, you can lock the ram by closing the pump’s shut‑off valve, which traps fluid inside and holds the piston steady.

Routine maintenance checklist

Hydraulic systems thrive on clean fluid and intact seals. A practical maintenance schedule includes:

• Inspecting the fluid for discoloration or particles every 200 hours of operation.
• Replacing seals annually or when you notice a drop in pressure.
• Checking the rod for scratches; a damaged coating can lead to corrosion.
• Verifying that the pressure‑relief valve still trips at the correct setting.

If you ever see a slow loss of pressure, it’s often a sign of a minor leak—address it before the ram starts to lose lifting capacity.

Troubleshooting common issues

Most problems boil down to fluid, pressure, or mechanical wear. A “stiff” ram that won’t extend usually points to a clogged filter or air trapped in the line. Conversely, a ram that moves too quickly may have a worn relief valve or an oversized pump. When in doubt, depressurise the system, bleed any air, and run a low‑pressure test to isolate the fault.

FAQ

What does the 10‑ton rating really mean?

It indicates the maximum force the ram can generate at its rated pump pressure, not the weight it can lift indefinitely. Safety factors are built in, so operating below the rating is advisable for long‑term reliability.

Can I use this ram to lift a passenger car?

Yes, provided the car’s weight is within the ram’s capacity and the mounting points are rated for the load. Always use a secondary safety device such as jack stands.

How often should the hydraulic fluid be changed?

Most manufacturers recommend a fluid change every 1,000 hours or once a year, whichever comes first. If the fluid looks milky or contains metal particles, change it sooner.

What are the signs of a failing seal?

Typical indicators include a gradual drop in pressure, visible fluid seepage around the rod, or a hissing sound when the ram is under load.
