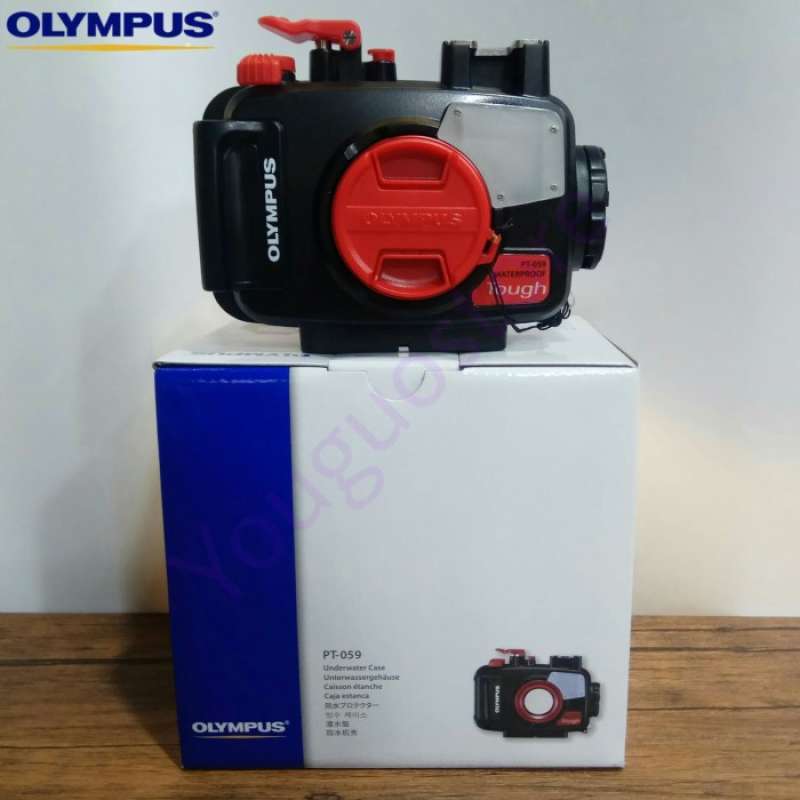

Repairing the Olympus PT059 Underwater Housing for Deep Dives

When you’re ready to explore the hidden depths, a reliable housing is essential. The Olympus PT059 is a popular choice among underwater photographers and hobbyists because it offers robust protection and clear optical performance. However, like any piece of gear exposed to saltwater and pressure, it can develop issues—cracks in the seal, a stuck hatch, or even a faulty pressure plate. This guide walks you through troubleshooting, disassembly, and effective repairs to get your PT059 back to dive‑ready condition.

Common Problems That Require Repair

Before you pick up a wrench, it helps to know what usually goes wrong:

• Seam Leak – A compromised gasket or missing seal can let water seep in.
• Hatch Sticking – Corrosion or debris can cause the flip‑top to jam.
• Pressure Plate Misalignment – Mis‑tolerances can lead to uneven pressure distribution and leaks.
• Cracked or Fractured Housing – Impact damage or manufacturing defects may fracture the polycarbonate body.
• Cable Feed Issues – The cable guide may become clogged, preventing proper cable routing.

Identifying the problem accurately saves time and prevents accidental damage during repair.

Gathering the Right Tools and Parts

For a standard PT059 repair you’ll need:

• Phillips and flat‑head screwdrivers (2 mm and 4 mm)
• Fine‑toothed tweezers
• PTFE (Teflon) sealant or silicone gasket material
• Replacement pressure plate (if misaligned)
• Soft‑bristle brush or compressed air for cleaning
• Waterproof thread seal (e.g., Teflon tape)
• Portable microscope or magnifying glass for inspection

Most of these items are inexpensive and can be sourced from camera or scuba shops.

Step‑by‑Step Repair Process

1. Safety First: Remove the Housing from the Camera

Disconnect the camera’s power and data cables, then carefully detach the PT059 from the camera body. Keep the housing on a clean, flat surface to avoid scratching the internal seals.

2. Inspect for Visible Damage

Use a flashlight and, if necessary, a magnifier to scan the outer shell for cracks, dents, or discoloration. Mark any suspect areas with a small dot of waterproof paint or a removable sticker.

3. Disassemble the Housing

Start by loosening the screws that attach the pressure plate to the housing. Remove the plate and set it aside. Next, gently pry apart the housing halves using a flat‑head screwdriver, working around the seam to avoid forcing the seal.

4. Clean the Seal and Interior

Using a soft brush and compressed air, eliminate salt deposits, algae, and debris from the gasket surface and housing interior. A clean seam is critical for a watertight seal.

5. Replace or Re‑Seal the Gasket

For a leaking seam, either replace the rubber gasket or apply a thin, even layer of PTFE sealant along the mating surface. Allow the sealant to cure for the manufacturer’s recommended time—typically 24 hours.

6. Realign or Replace the Pressure Plate

Check the pressure plate for warping or wear. If it’s misaligned, use a small screwdriver to gently tap it back into place, ensuring that all contact points are flush with the housing rim. If the plate is cracked, replace it with a new one that matches the original’s dimensions.

7. Re‑assemble the Housing

Align the halves and press them together until the gasket clicks into place. Tighten the screws in a crisscross pattern to distribute torque evenly, but avoid over‑tightening which can strip threads.

8. Test for Leak Integrity

Fill the housing with fresh water, seal the hatch, and submerge it in a bucket of water for 5–10 minutes. Observe for bubbling or any water ingress. If leakage persists, disassemble and double‑check the seal application.

9. Reattach to Camera and Final Checks

Once satisfied with the seal, reattach the housing to the camera. Ensure the cable feed is clear and the data lines are secure. Perform a short test dive in a controlled environment before heading out.

Pro Tips for Longevity

• Always use a clean, dry cloth to wipe the housing after each dive.
• Store the PT059 in a dry case with desiccant packets to reduce moisture buildup.
• Avoid abrupt temperature changes that can cause seal expansion or contraction.
• Consider applying a thin coat of clear marine varnish on the outer shell to resist scratches and algae growth.

When to Seek Professional Help

If you encounter:

• Cracks deeper than 1 mm in the housing shell.
• Repeated seal failures despite proper re‑application.
• Damage to internal electronics or cable routing.

It’s safer to hand the unit over to a specialized camera or marine electronics repair shop. Attempting complex repairs yourself can risk permanent damage or void warranties.

Frequently Asked Questions

Q: Can I use regular silicone instead of PTFE sealant?

A: Regular silicone can work, but it may not hold up under the high pressure of deep dives. PTFE offers better resistance to abrasion and pressure changes.

Q: How often should I replace the gasket?

A: Inspect annually, or after each 200 hours of dive time. Replace if it shows wear, brittleness, or discoloration.

Q: Is it safe to use the housing in saltwater after a repair?

A: Yes, provided the seal is intact and the housing has been cleaned of any corrosive residue. Always conduct a leak test before exposure.

Q: What’s the difference between a pressure plate and a gasket?

A: The gasket sits around the seam to create a watertight barrier, while the pressure plate distributes the external pressure evenly across the housing’s surface.
