When a plant’s process line is pressurised, the humble safety valve becomes the unsung hero that prevents catastrophic over‑pressure events. Selecting the right valve, understanding how it operates, and accessing reliable documentation can make the difference between smooth operation and an emergency shutdown. Below we break down the most common industrial safety valve families, explore where each shines, and point you toward handy PDF resources that consolidate standards, sizing tables, and installation tips.

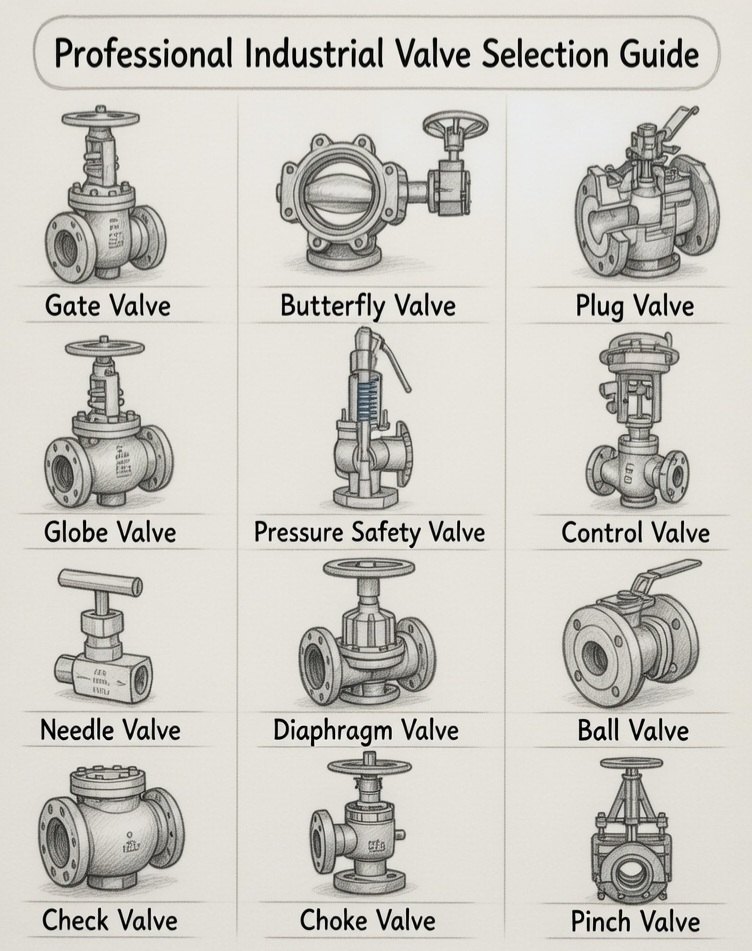

Key Types of Industrial Safety Valves

Safety valves aren’t a one‑size‑fits‑all solution. Their designs reflect the specific medium, pressure range, and response time required by an operation.

• Spring‑Loaded (Conventional) Valves – The classic “pop‑off” design where a calibrated spring holds the disc closed until the set pressure is exceeded. Ideal for low‑ to medium‑pressure steam and water systems.
• Pilot‑Operated Valves – Use a small pilot valve to sense pressure and open the main valve. Their ability to achieve tighter reseating and lower leakage makes them popular in high‑pressure gas and petrochemical circuits.
• Balanced‑Bellows Valves – Incorporate a bellows that offsets the back‑pressure acting on the disc, ensuring the set pressure remains consistent even when downstream pressure varies. Frequently chosen for corrosive liquids where pressure fluctuations are common.
• Rupture Discs (Bursting Discs) – Though technically a pressure‑relief device rather than a valve, rupture discs provide instantaneous, full‑flow opening at a predetermined burst pressure. Used where a rapid dump of fluid is essential, such as in emergency venting of volatile organic compounds.
• Thermal‑Relief Valves – Designed to open when temperature‑induced pressure rises beyond safe limits, often found on boiler systems and heat‑exchange loops.

Where Each Valve Type Makes the Most Sense

Choosing a valve hinges on more than just pressure rating. Consider the medium’s chemical aggressiveness, the need for precise reseating, and maintenance constraints.

Spring‑Loaded Valves are straightforward to service and cost‑effective, making them a go‑to for water‑treatment plants and HVAC chillers. However, they can suffer from set‑pressure drift if the spring ages or if the fluid contains particulates that jam the seat.

Pilot‑Operated Valves excel in high‑pressure pipelines where a small opening is preferred until a full release is necessary. Their modular pilot can be swapped without shutting down the entire line, a feature valued in continuous‑process refineries.

Balanced‑Bellows Designs neutralise back‑pressure, which is crucial for vessels that experience rapid flow changes—think of reactors where the product expands quickly during a reaction phase.

Rupture Discs are single‑use devices; after they burst, replacement is mandatory. They’re perfect for safety‑critical installations where a valve that sticks open could cause more harm than a one‑time vent.

Thermal‑Relief Valves are typically paired with boilers and steam generators, where temperature spikes are a known risk. Their set points are calibrated to the material limits of the vessel rather than just pressure.

Essential PDF Resources for Engineers and Safety Officers

Technical documentation often lives behind a PDF link, and having the right files at hand speeds up compliance checks, sizing calculations, and installation reviews. Here are some reliable sources you can bookmark.

• ASME Boiler and Pressure Vessel Code (BPVC) – Section I: A comprehensive PDF that outlines design criteria, testing procedures, and certification requirements for safety valves in steam systems.
• API 520 – Sizing and Selection of Pressure‑Relieving Devices: Offers tables for flow coefficients (Cv) and guidance on when to choose a pilot‑operated versus a conventional valve.
• ISO 4126‑1:2013 – Safety Devices for Protection Against Excessive Pressure – Part 1: The international standard covering terminology, performance testing, and marking requirements.
• Manufacturer Installation Manuals: Most valve makers (e.g., Emerson, Fisher, and Swagelok) provide downloadable PDFs with bolt‑torque specs, seating material recommendations, and troubleshooting flowcharts.
• Risk Assessment Checklists: PDF templates that help safety officers document hazard analyses, valve set‑point verification, and periodic inspection logs.

Most of these documents are available free through industry association portals or by registering on the issuing organization’s website. When you download a PDF, check the revision date—standards evolve, and using an outdated edition can lead to non‑compliance during audits.

Practical Tips for Selecting and Maintaining Safety Valves

Even the best‑specified valve can underperform if it isn’t installed or maintained correctly. Below are a few field‑tested suggestions.

• Verify that the valve’s set pressure matches the design pressure of the equipment, allowing for a typical tolerance of ±3% as recommended by ASME.
• Inspect the seat material for compatibility with the process fluid. For acidic streams, a metal‑alloy or PTFE seat may be required instead of the standard stainless steel.
• Schedule a functional test at least annually. A simple bench‑test using a calibrated pressure source can reveal spring fatigue or pilot‑valve leakage before an incident occurs.
• Document any re‑set events. If a valve has opened more than twice in a short period, it could indicate upstream pressure spikes that need to be addressed.
• Keep a copy of the valve’s data sheet (often a PDF) on the equipment’s nameplate. Quick access helps maintenance crews verify part numbers during replacements.

FAQ

What differentiates a pilot‑operated safety valve from a conventional one?

A pilot‑operated valve uses a small auxiliary valve to detect pressure changes and command the main disc to open. This arrangement allows for finer control, lower leakage, and the ability to handle higher pressures compared to a spring‑loaded valve that relies solely on mechanical compression.

Can I use a safety valve rated for steam on a liquid service?

Generally, yes, provided the valve’s pressure rating and material compatibility align with the liquid’s properties. However, liquids often require larger flow coefficients because they are incompressible, so you may need to select a larger valve or a different disc design to achieve the desired discharge rate.

How often should safety valve documentation be reviewed?

Best practice is to revisit all relevant PDFs—standards, manufacturer manuals, and internal checklists—whenever a new revision is released, which typically occurs every 2‑3 years. Aligning your documentation schedule with the release cycle helps avoid gaps during regulatory inspections.

Is a rupture disc considered a safety valve?

Rupture discs serve a similar protective function but differ mechanically; they are single‑use devices that burst at a set pressure and do not reseat. Because they cannot be reset, they are often paired with a downstream valve that can be closed after the disc has been replaced.
